As the best practice of the latest few years, .local domain is not a good way to be deployed in any environment. The main reason for this is that since November 1 2015, will end the ability to have .local domains in public certificates. This will also apply in small environments, because we also use that certificates (for example we use them in Remote desktop services, Exchange, Remote web workplace…). On the other way, it is also not a good choice to have the internal domain name the same as the external. I would suggest you, for the internal domain name, to choose some kind of subdomain of the public domain name. For example, we can use company.com as public (external) domain name and internal.company.com as internal (Active Directory) domain name.
When you install the Essentials Server 2012R2, you will not be able to choose the internal domain name as you want, but this is simply your NetBIOS domain with.local extension in the end – exactly the type of extension we want to avoid.
Here is the step-by-step guide how to install Essentials server with different, more accurate options. In the example we have below, we will install Essentials server with NetBIOS domain name MyCompany, AD domain name Internal.Mycompany.com, server name MyServer and company name MyCompany. In your installation, you have to change the variables to your desired values.

The installation begins with a normal server installation from a media and after the server restarts, when the Configure Windows Server Essentials wizard will appear, you can see that you have no place to write your AD domain name (picture 1).

Picture 1
At this point, just close this wizard with cancel (picture 2).

Picture 2
Open the PowerShell as Administrator and write the syntax:
Start-WssConfigurationService -CompanyName “MyCompany” -DNSName “Internal.MyCompamny.com” -NetBiosName “MyCompany” -ComputerName “MyServer” –NewAdminCredential $cred -Setting All
The explanation of all used switches is available on TechNet. Enter your AD administrator credentials in the window that will appear. This will be the new administrator – the same as you configure it in the Essential server wizard (picture 3).

Picture 3

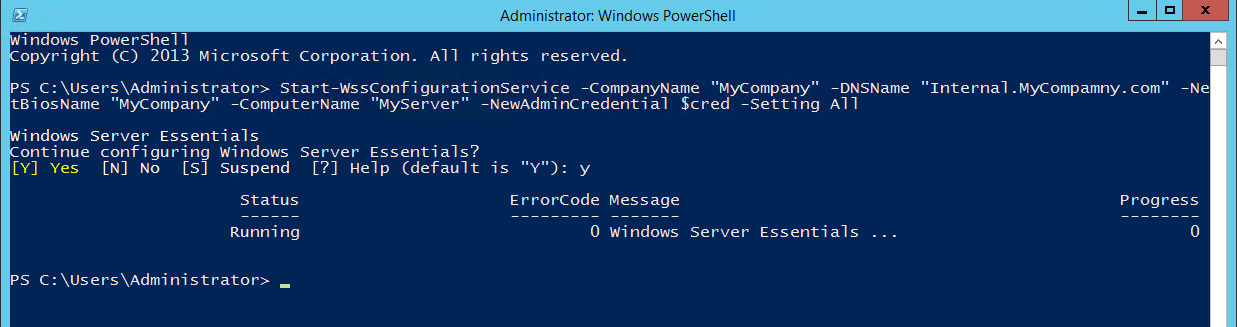

When the system will prompt, if you want to continue the Essentials server configuration, just click Y (picture 4).

Picture 4

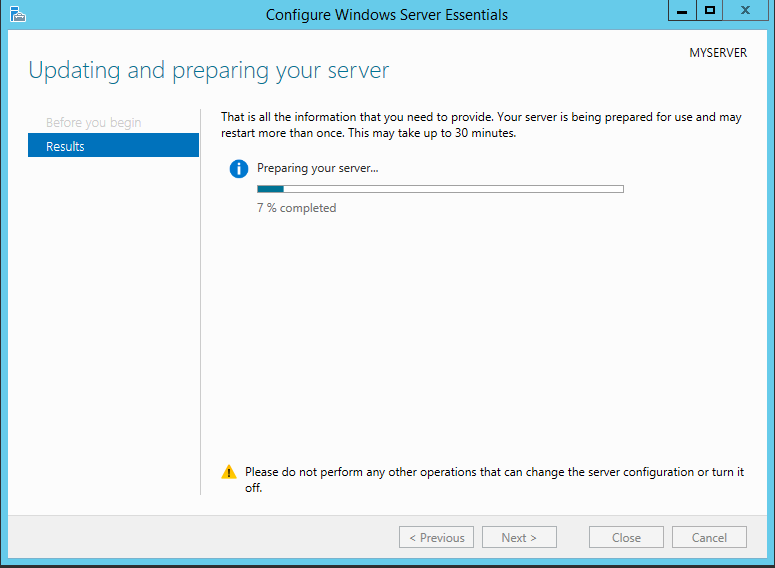

Exit from PowerShell and the server will restart. After this, when you log in, you will see that the wizard Configure Windows Server Essentials will run. You have just to wait that it will finish. At this point the wizard has all the information it needs and you are not able to change them (picture 5).

Picture 5

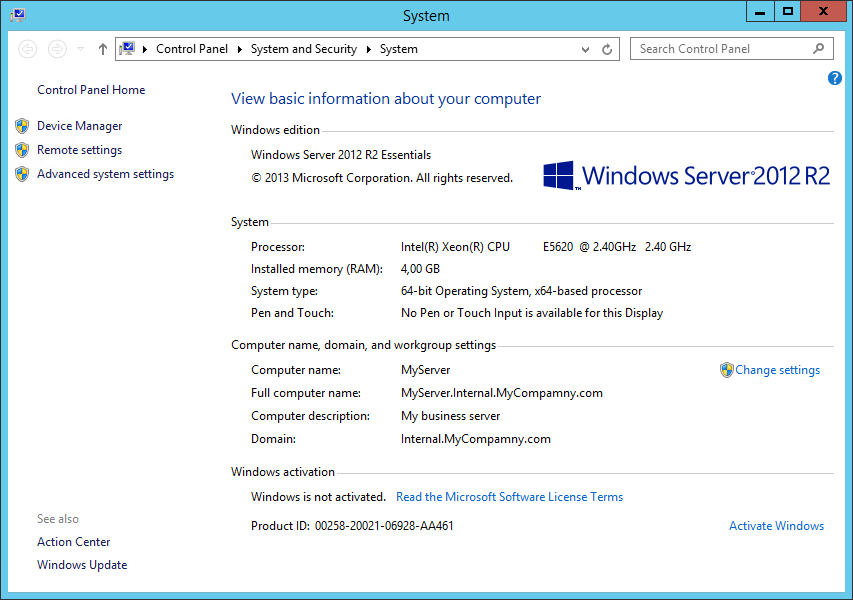

This is all you need to do. As you can see in the picture 6, now we have installed the server with a non .local domain and with all the settings we want.

Picture 6

9 Responses to Step-by-step install Windows Server Essentials 2012 R2 with non local domain

    • elvis says:

      Hi,
      Of course. You can use any domain name, but my suggestion is to use a subdomain of public used company domain.

      • Olea says:

        Thanks for your answer! i tryed with a different domain name (as well as subdomains) and seems like it does not allow me to use the .mx suffix.

        if i use something like “subserver.myown.com” its ok for the setup process …
        it reports me an error if I add the “.mx” Do you know if it is restricted?

        or can you try and test this example: “subdmntest.myown.com.mx”?
        than you very much for your help!

        • elvis says:

          Hm, I don’t know why. The “.mx” domain is just a domain. Maybe it was something wrong with resolving it? Internet connection?

  • Randy says:

    I found this article and have used the technique 3 times now. I was thrown by the fact that the “Enter your AD administrator credentials in the window that will appear. This will be the new administrator – the same as you configure it in the Essential server wizard” REQUIRES an answer DIFFERENT than the “administrator” login created when first installing Windows 2012r2. Once I got past trying to figure out what the error message was all about and put in a different user name and password. (I am NOT joining this to an existing domain so I am setting up a new AD Administrator) It worked exactly as expected.

    There is a noticeable time delay between when you exit power shell and the system reboots. Something that is a little disconcerting after just seeing several errors (because of the user/password miss understanding) and wondering if something is broken.

    Third time’s the charm! :)

    Thank you very much for this article. I wonder why the world is not beating down your door. I have chosen to register a second “short as possible” domain.net for my clients to use as their internal domain. I also use the “short” domain name for their Office 365 account initial internal domain.

    Randy

  • JamesH says:

    Thanks for this tip – extremely useful. I have been testing it for use with a Windows 2012 R2 Std on which the Essentials Experience role has been enabled (not a Windows 2012 R2 Essentials SKU). So this is Windows 2012 R2 Std install with the Essentials Experience role installed, then a reboot performed and then the PowerShell script is run. It works well with one or two small changes that i would like to document here if anyone else stumbles across this blog page.

    1) The server rejects the -Setting All parameter for some reason. I omitted it in the end because it is simply the Windows Updates config which you can do later in the GUI.

    2) I discovered that whatever I did, the server completely ignored the -ComputerName “MyServer” parameter. When the server rebooted the server name had not changed. This was annoying because once AD is installed, you can’t change the server name through the GUI. I believe there may be some registry hack or script you can use to change the name but this seems unclean. So, I started again and simply named the server to my required name when it was in workgroup mode, then ran the script. I kept the parameter in the script, just in case, but reading Technet, it seems it’s not required, so you can probably leave it out.

    So this is the script I used:

    Start-WssConfigurationService -CompanyName “MyCompany” -DNSName “Internal.MyCompamny.com” -NetBiosName “MyCompany” -ComputerName “MyServer” –NewAdminCredential $cred

    And as Randy says, there is a noticeable time delay between closing PowerShell and the server rebooting – it appears as though nothing is happening but just leave it and it will reboot (you can check Task manager to see that it is indeed doing something behind the scenes).

    • elvis says:

      Thank you for comments.
      You are totally right.
      1. As you write, this is an Windows Update setting and can be changed later without any problem. The succes of this setting of course depend on many things (internet connection, …) and can fail.
      2. True. My Mistake. DC name can not be changed, but you can use the same script if you want to install a new domain on Essentials server (if you don’t want a .local domain). There you need to specify a computer name.
